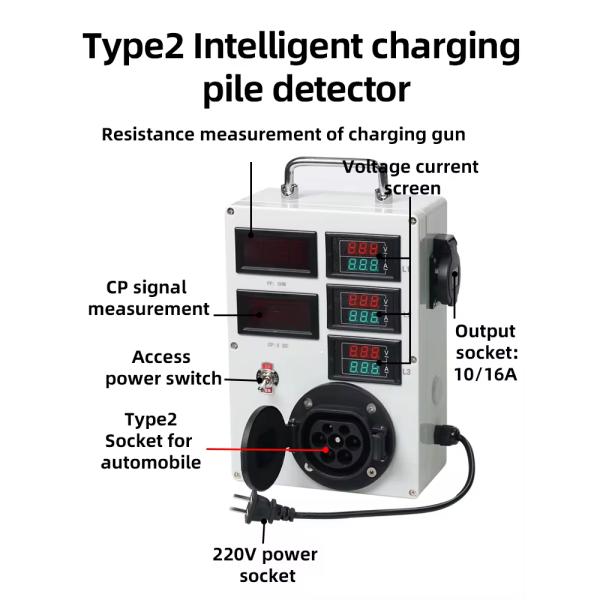

Customized Type 2 EV Vehicle Charger Simulator With 32A/16A Rated Current Outlet

Name: Customized Type 2 EV Vehicle Charger Simulator With 32A16A Rated Current Outlet
Brand: QIAOYI
Price: 909.09 USD

China Customized Type 2 EV Vehicle Charger Simulator With 32A/16A Rated Current Outlet wholesale

Place of Origin : Jiangsu, China

Model Number : QYCO7-11JL

Brand Name : QIAOYI

Price : CN¥909.09/boxes 1-4 boxes

Purpose : for retrofit/upgrade

Condition : New

Type : Type2

Voltage : 240 V AC

Certificate : CE Approved

Contact Now

Recommend Products

Customized Type 2 EV Vehicle Charger Simulator With 32A/16A Rated Current Outlet

Products Description

Company Profile

About Us

Jiangsu Qiaoyi New Energy Technology Co.Ltd. was a professional manufacturer. Qiaoyi is a company that provides customized solutions for home charging piles, portable ev charging and so on. It has more than 30 product patents, covering the whole product system of wall-mounted charging piles, portable charging piles, charging guns, charging pile accessories and charging adapters. Including standard products and customized products, it has obtained authoritative certifications such as CE, FCC and system certification.
We sincerely welcome customers from all over the world to visit and cooperate with us.

Product Paramenters

Resistance measurement of charging gun
current	Normal state	press the button on the gun
24A	60Ω±5%	3380Ω±5%
24A	220Ω±5%	3520Ω±5%

Charging pile manufacturer's instructions

1. Insert the three plugs into the 220V power supply, and then the two display screens will light up; 2. Insert the charging
gun into the front socket of the tester;
3. Turn on S1 switch to see the CP voltage change(indicator model does not have this function);
4. Turn on S2 switch to see the CP voltage change(indicator model does not have this function); After completing the above steps, the charging pile also starts to work and there is voltage output that can be in us See the data on the round display.

Installation Instructions

Instructions for charging pile installer

1. When you insert the charging gun, the display screen does not light up;

2. Press S1, S2 switch, then the display light up,according to the table data, judge Charging pile motherboard is not good

3. Resistance is to measure the resistance inside the charging gun, when the charging gun button is pressed and when the charging gun button is not pressed The resistance value of the stun gun button is different. Also refer to the table;

4, Volitmeter and ammeter are used to measure whether the charging line is short circuit and there is no power output.

Note of Use

1. Charging pile manufacturers, because site is 220V power supply, so the tester is directly designed to use external 220V power supply.

2. Resistance is to measure the resistance inside the
charging gun. The resistance value is different when the charging gun button is pressed and when the charging gun button is not
pressed Also refer to the table in the details page.

Certifications

https://www.alibaba.com/product-detail/16A-3-5kw-Portable-Electric-Vehicle_1601193647670.html?spm=a2747.product_manager.0.0.483971d2asaBtM

https://www.alibaba.com/product-detail/Type2-Portable-Ev-Charger-Ev-Charging_1601173481299.html?spm=a2747.product_manager.0.0.483971d29kBl8o

https://www.alibaba.com/product-detail//EV-Charger-gun-holder-type2-new_1601192893632.html?spm=a2793.11769229.0.0.6ad73e5fk30k4L

FAQ

Q1. Are you a factory?

A: We are a professional manufacturer for several years.Covering the whole product system of home charging piles.

Q2. Do you test all your products before delivery?

A: Yes, we have video inspection and testing before delivery.

Q3: What about your warranty for EV Charger?

A: Generally 1 year

Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and shipping cost.
