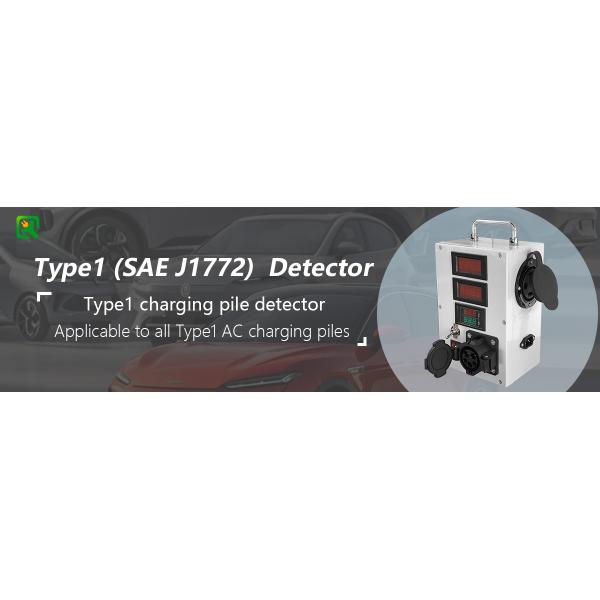

Type1/J1772 Tester 48A Max Power Charger For Energy Cars Includes Charging Gun Test

Name: Type1J1772 Tester 48A Max Power Charger For Energy Cars Includes Charging Gun Test
Brand: QIAOYI
Price: 1 USD

China Type1/J1772 Tester 48A Max Power Charger For Energy Cars Includes Charging Gun Test wholesale

Place of Origin : Jiangsu, China

Model Number : QYCO7-11JL-T2

Brand Name : QIAOYI

Price : CN¥1,032.73/boxes 1-49 boxes

Purpose : for retrofit/upgrade

Condition : New

Type : J1772

current : 48A

Certificate : CE Approved

Material : PC+Copper

Warranty : 1 Year

Product Name : Type1 tester

Contact Now

Recommend Products

Type1/J1772 Tester 48A Max Power Charger For Energy Cars Includes Charging Gun Test

Product Paramenters

CP signal measurement of charging pile motherboard			Charging gun resistance measurement
current	S1, S2, CLOSED	current	NORMAL STATE
13A	-8.09±5%	16A	680Ω±5%
16A	-7.19±5%	32A	220Ω+5%
32A	-2.39±5%
10A	-9.00±5%
8A	-9.60±5%
24A	-4.80±5%

Usage method:

1. Insert the charging gun, and the display does not light up.

2. Press S1, S2 switch, then the display light up, according to the table data, judge whether the charging pile motherboard is normal.

3. Resistance is to measure the resistance inside the charging gun. The resistance value is different when the charging gun button is pressed and when the charging gun button is not pressed.

4. Voltmeter and ammeter are used to measure whether the charging line is short circuit and there is no power output.

Attention to use

1.The installation master does not have 220V power supply for on-site installation. The charging pile tester is designed without a power supply, and the power supply is taken from the charging pile.In this case, only when the charging pile is energized, the tester display can light up. The display will not light up without power on the charging pile.

2.Voltmeter and ammeter are used to measure whether the charging line is short circuit and there is no power output.

Advantages: No power supply is required, and other data can be fully measured when the main board of the charging pile is normally energized

Disadvantages:When detecting the charging pile, it can only be used normally when the S1 and S2 switches are closed at the same time, and the measurement is not comprehensive when the main board of the charging pile is broken.

CP signal measurement of charging pile motherboard
CURRENT	S1,S2, CLOSED	S1 CLOSURE	S1,S2,CLOSURE
13A	12.00±5%	-7.44±5%	-3.60+5%
16A	12.00±5%	-6.39±5%	-7.19+5%
32A	12.00±5%	-0.79±5%	-2.39+5%
10A	12.00±5%	-8.50±5%	-9.00+5%
8A	12.00±5%	-9.20±5%	-9.60+5%
24A	12.00±5%	-3.60±5%	-4.80+5%

Charging gun resistance measurement
CURRENT	NORMAL STATE
16A	680Ω+5%
32A	220Ω+5%

Usage method: 1. Insert the three plugs into the 220V power supply, and then the two displays will light up; 2. Insert the charging gun into the front port of the tester, 3. Turn on S1 switch to see Cp voltage change (indicator model does not have this function), 4. Turn on S2 switch to see Cp voltage change (indicator model does not have this function); After completing the above steps the charging pile also starts to work, there is a voltage output, and the data can be seen on our circular display 5. lf you need to output with load, just plug the electrical appliance into the output socket.

(Output socket rated power is 16A) 6. Press the button on the charging gun, you can see the change of the ohmmeter, so as to judge whether the charging current is wrong (the indicator model does not have this function)

Attention to use 1.For charging pile manufacturers, since there is 220V power supply on site, the tester is directly designed to use external 220V power supply. When the charging gun is inserted, the CP voltage displays about 12V. Press S1 and S2, corresponding to the data in the details page,judge whether the charging pile motherboard is good. 2.Resistance is to measure the resistance in the charging gun, the resistance value is 7 types when pressing the charging gun button and not pressing the charging gun button, but also refer to the table in the details page, voltmeter and ammeter are used to measure whether the charging line is broken and there is no power output ★advantages: the detection is more comprehensive, can measure all the data of S1S2,can measure the resistance of the charging gun, Output voltage current. ★Disadvantages: The detection requires voltage, which is inconvenient to carry on.

Product Name	Type1 AC charging pile analog tester
Input voltage	380V+20%
Control mode	S1 S2 simulates car signals
Display parameters	Voltage, current (when connected to load) CP voltage, charging pile resistance
Simulated load capacity	16A(Continuous Test)
Simulated load capacity		32A(Short time Test)
